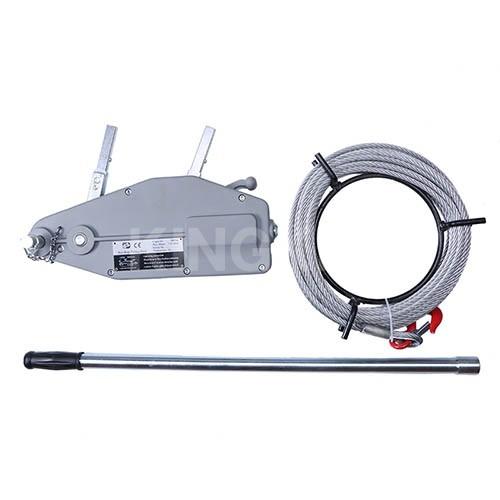

Description
| Item No. | KPHA-001 | KPHA-002 | KPHA-003 | KPHA-004 | ||
| Rated Capacity (kg) | 800 | 1600 | 3200 | 5400 | ||
| Rated Forward Handpower (n) | 343 | 441 | 441 | 745 | ||
| Rated Forward Travel (n) | ≥52 | ≥55 | ≥28 | ≥30 | ||
| Rope Diameter (mm) | 8.3 | 11 | 16 | 20 | ||
| Wire Rope Safety Factor Load Capacity | 5 | 5 | 5 | 5 | ||
| Safety Factor &Static Load Capacity | 4 | 4 | 4 | 5 | ||
| Max. Travelling Load (kg) | 1200 | 2400 | 4000 | 8000 | ||
| Net Weight (kg) | 14.6 | 26.4 | 49.3 | 98 | ||
